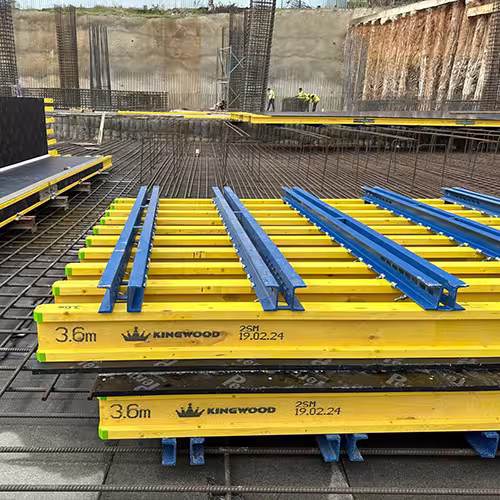

WOODEN H20 BEAMS
King Beams H20 beams allow for seamless use in both small- and large-scale construction projects.
Material: Softwood (pine, spruce), water-resistant coating
Height: 200 mm
Web Thickness: 27–28 mm
Flange Thickness: 40 mm
Weight: Average 4.8 kg / meter
Load Capacity: High strength
Standard Lengths: A total of 8 sizes ranging from 2.45 m to 6.00 m (inclusive)
For your questions and feedback, you can contact our customer service and receive information and assistance on technical matters.

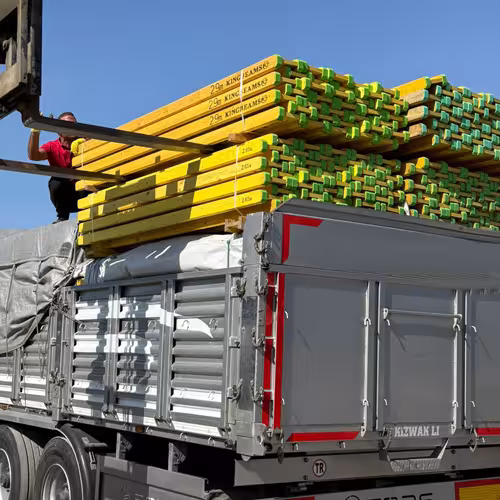

Our King Beams H20 wooden beams are manufactured and kept in stock in 8 standard sizes.
Standard Sizes:
- 2.45 m
- 2.90 m
- 3.30 m
- 3.90 m
- 4.50 m
- 4.90 m
- 5.90 m
- 6.00 m
PARAMETER | VALUE |
Breaking and bending values under static bending | ≥ 9.5 kNm (950 kgm) → 12.36 kNm |
Modulus of elasticity (plywood thickness 21–34 mm) | ≥ 6000 MPa → 8040 MPa |
Allowable compressive load at support (vertical force) | ≥ 2.0 MPa → 2.6 MPa |
Tensile strength of adhesive joints (along beam) | ≥ 0.8 MPa → 0.95 MPa |
Adhesive strength of wooden beams under static bending | ≥ 27 MPa → 31 MPa |
Connection strength with shear wall | ≥ 20 kN → 28 kN |
Allowable lateral force (Q) | 11.0 kN → 16.48 kN |
Allowable bending moment (M) | 5.2 kNm → 5.8 kNm |
